P25 Operation | Multiband Operation | Extreme Ergonomics | Rugged Specifications

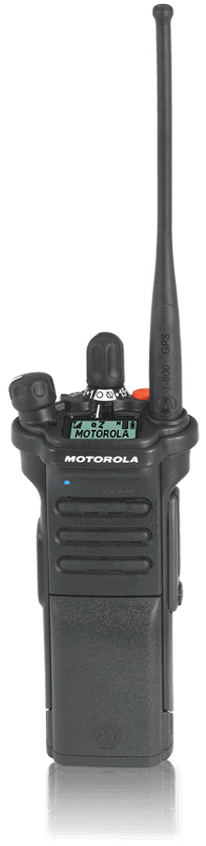

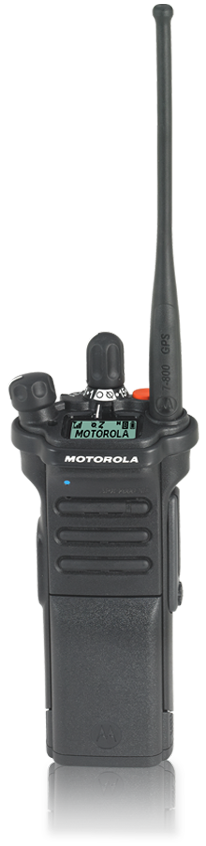

The Most Advanced, Ultra-Rugged Radio
Motorola takes the safety of first responders personally, which is why they designed the APX™ 7000XE - the most advanced, ultra-rugged radio with innovative features designed by first responders for first responders working in extreme environments.
Motorola has created an ergonomically-superior radio that is easy to operate, with glove-friendly controls and a large top display. Significantly louder and clearer so that every word is heard when you're battling noise in almost any environment. A mission-critical multiband, multiprotocol radio so seamless, you can be confident your communications are truly interoperable.
Focus on the task, not the technology, with the high-performing portable that stands up and stands out in the toughest conditions.
Advanced Ergonomics For Extreme Conditions
- Easy to grip, hold and control in harsh conditions
- Glove-friendly controls are big, recognizable and easy to distinguish
- Well-spaced knobs eliminate accidental activation
- Enlarged top display is easy to read, in dark or low light
- Shielded push-to-talk button is easy to use with a gloved hand
- Largest emergency button in the industry
Exceptional Audio Means Every Word Is Heard
- 50% louder and clearer without distorting transmissions
- Dual microphone locates the talker, cancels out ambient noise
- Extreme Audio Profile reduces background noise and improves voice clarity
- Equipped with the latest AMBE digital voice vocoder
- New speaker grill design for improved water runoff
Next Generation Technology To Rely On Now
- Project 25 Phase 2 technology provides twice the voice capacity
- Multiband operation ensures seamless interoperability
- Backwards and forwards compatible with all Motorola mission-critical radio systems
- Future-ready for applications like Mission Critical Wireless and GPS location tracking
Motorola APX 7000XE Features and Benefits
Two Radio Models
Two distinct radio models allow the user to select the device that best suits their environment. Both models offer a large top display.
Shielded Push-to-Talk Button
Easy to use with gloved hands and is equally accessible for both right- and left-handed users.
Well-spaced knobs eliminate accidental activation and glove-friendly controls are big, recognizable and easy to distinguish.
Ensures a secure grip, while providing a wider control top area.
Enhances a slip-free grip and prevents drops when the radio becomes wet.
Enlarged Top Display
Easy-to-read, in dark or low light.
X-Large Emergency Button
Largest emergency button in the industry with programmable 0-6 second time delay.
Directional-sensing technology locates the talker and activates sophisticated algorithms in noisy environments, canceling out unwanted background noise and delivering clear communication.
1 Watt Speaker
Custom designed 1 watt loud speaker reproduces speech dynamics for superior intelligibility in most environments.
Equipped with the latest AMBE 2 digital voice vocoder.
Extreme Audio Profile
Provides the latest noise reduction software for users that frequently encounter loud environments.
The only compact, lightweight multi-band radio that delivers the convenience of two radios in one, while maintaining APCO TIA receiver specifications.
Enables accountability and location tracking of an individual or vehicle, which can be sent to a map-based location application, allowing dispatch operators to manage and track personnel resources.
FIPS 140-2 Level 3 certified hardware encryption provides tamperproof security to ensure the highest level of secure communications.
Uses color to notify you of the radio mode, potential emergencies, or specific events. Color alerts provide information at a glance.
Adjust audio levels, lighting and tones through user selected or automated options. Whether on surveillance or working in bright sunlight, you can customize settings as needed.
Navigate through channels, talk-groups and zones while pre-recorded voice file provides a selection description.
Include an expansion slot that supports future option cards and data applications.
P25 Phase 2-TDMA
Doubles voice capacity, allowing additional users on the system without the need for additional frequencies or infrastructure.
High-contrast color display is easy-to-view in all kinds of light.
Full Size Keypad
Simple to navigate and use.
Trunking standards supported:
- Clear or digital encrypted ASTRO®25 Trunked Operation
- Capable of SmartZone®, SmartZone Omnilink, SmartNet®
- Capable of P25 Phase 2 - TDMA
Analog MDC-1200 and Digital APCO P25 Conventional
Motorola APX 7000XE Models
Model 1.5 Top Display
Tall Monochromatic LCD Top Display, 1 Line Text/8 Characters, 1 Line of Icons, No Menu Support, Multi-Color Backlight.
700/800 MHz (763-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels
Model 3.5 Dual Display
Tall Monochromatic LDC Top Display, Large Color LCD Front Display, 4 Lines Text/14 Characters, 2 Lines of Icons 1 Menu Line, 3 Menus, White Backlight. Keypad: Backlight Keypad, 3 Soft Keys, 4-Direction Navigation, Key 4x3 Keypad, Home and Data Buttons.
700/800 MHz (764-870 MHz), VHF (136-174 MHz), UHF Range 1 (380-470 MHz), UHF Range 2 (450-520 MHz), 3,000 Channels
Motorola APX 7000XE Accessories
Safety Doesn't Stop With The Radio
Extend the power and reliability of your radio with the only complete line of accessories designed, tested and certified for optimal performance with APX portables. Whether it's our industry-leading Remote Speaker Microphone with noise-canceling technology for loud, clear communications or a Mission Critical Wireless Bluetooth earpiece for secure, discreet conversations, our accessories are so comprehensive and flexible, you can trust them to work overtime with your APX radio.
IMPRES™ Smart Audio Accessories
Be clearly heard the first time and eliminate repeating yourself. Whether you need to talk loudly or quietly, into or away from the accessory, IMPRES Audio lowers the loud talker level and raises the soft talker level automatically so listeners do not have to adjust the volume depending on who is talking.
IMPRES Smart Energy System Get the most out of every battery by eliminating the surprise of "low battery alerts." IMPRES chargers tell you exactly how much capacity is in an IMPRES battery before you attach it to your radio and exactly when an IMPRES battery has reached the end of service life.
Mission Critical Wireless Bluetooth® Accessories
The APX Mission Critical Wireless portfolio is skillfully engineered to give first responders enhanced security, quick pairing and fast PTT. Our earpieces provide exceptional audio clarity and volume so messages come through loud and clear in noisy settings. The discreet earbud, which looks like a consumer device, offers private listening in noisier environments. Durable yet lightweight, these wireless accessories fit snugly and comfortably for long shifts.
